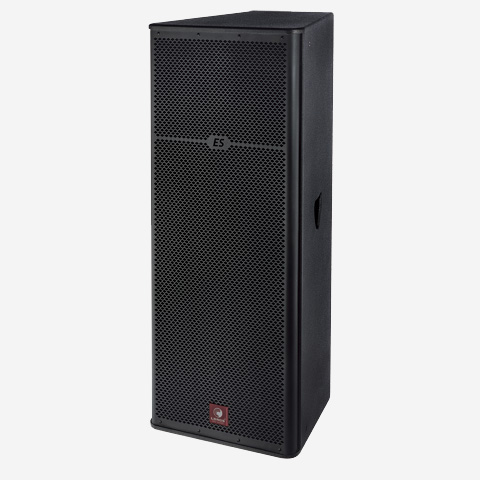

 | | | | ES-825 loudspeaker designed with dual 15 inch low-frequency speaker units (aluminum frame, 6.7 inch diameter magnet, and 2.95 inch diameter voice coil), a 6.5 inch mid-frequency speaker, and a 1.73 inch diameter titanium diaphragm high-frequency speaker unit. It can be safely driven over 800 watts of a ingle amplifier in 8Ω, two-way passive designed requirement. | |
| |  |
| | | | |
Model
Type
Frequency Response
Power Handling
Sensitivity
Max. SPL
Unit
Impedance
Dispersion pattern
Finish
Connector
Net Weight
Dimension(W×D×H)
|
ES-825
three-way, full range system
48Hz-18kHz±3dB
850W(RMS) 1200W(PEAK)
102dB(1W@1m)
LF 126dB/ MF 126dB/HF 128dB
LF 15" woofer×2 MF 6.5" mid-frequency unit×1 HF 44mm titanium diaphragm×1
4 ohm
80°H×60°V
Black paint
2×NL4 Speakon
58Kg
480×480×1200mm | | | | Prev：No infos | | Next：ES-815 | |
|
